40 PDS Villas
Plot Plan & Villa Types

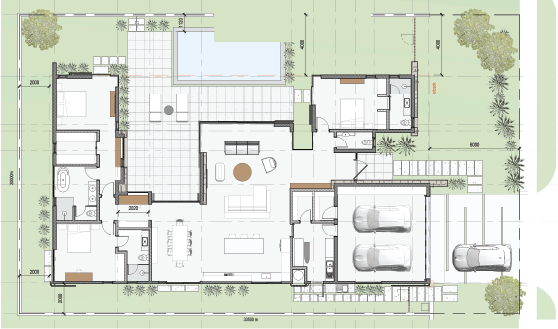

Villa Type 1
Villa Type 1
Areas - PLOT COVERAGE CALCULATION
| Name | Area Type | Area |
|---|---|---|
|
HOUSE |
Gross Building Area |
263.70 m² |
|
POOL BEACH |
Exterior Area |
63.54 m² |
|
POOL |
Exterior Area |
22.08 m² |
PLOT SIZES
| PLOT # | AREA m² |
|---|---|
|
56 |
669 m² |
|
58 |
815 m2 |
|
60 |
681 m² |
|
61 |
670 m² |
|
62 |
670 m² |
|
63 |
670 m² |
|
78 |
1036 m² |
FLOOR PLAN
Villa Type 1 - Mirrored
Villa Type 1 - Mirrored
Areas - PLOT COVERAGE CALCULATION
| Name | Area Type | Area |
|---|---|---|
|
HOUSE |
Gross Building Area |
263.70 m² |
|
POOL BEACH |
Exterior Area |
63.54 m² |
|
POOL |
Exterior Area |
22.08 m² |
PLOT SIZES
| PLOT # | AREA m² |
|---|---|
|
57 |
671 m² |
|
59 |
834 m2 |
|
65 |
647 m² |
|
66 |
670 m² |
|
67 |
670 m² |
|
68 |
670 m² |
|
75 |
1033 m² |
FLOOR PLAN
Villa Type 2 - Plot 64
Villa Type 2 - Plot 64
Areas - PLOT COVERAGE CALCULATION
| Name | Area Type | Area |
|---|---|---|
|
HOUSE |
Gross Building Area |
241.08 m² |
|
POOL BEACH |
Exterior Area |
27.95 m² |
|
POOL |
Exterior Area |
14.52 m² |
PLOT SIZES
| PLOT # | AREA m² |
|---|---|
|
64 |
657 m² |
FLOOR PLAN

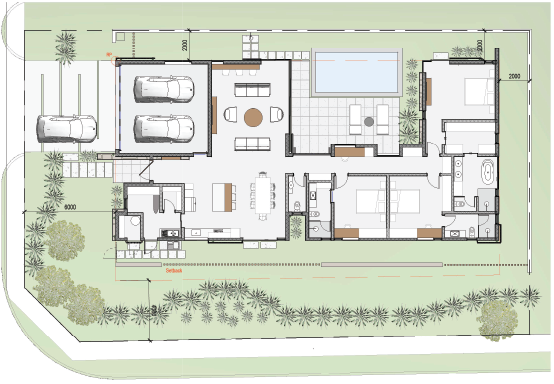

Villa Type 2 - Mirrored - Plot 69
Villa Type 2 Mirrored - Plot 69
Areas - PLOT COVERAGE CALCULATION
| Name | Area Type | Area |
|---|---|---|
|
HOUSE |
Gross Building Area |
241.08 m² |
|
POOL BEACH |
Exterior Area |
27.95 m² |
|
POOL |
Exterior Area |
14.52 m² |
PLOT SIZES
| PLOT # | AREA m² |
|---|---|
|
69 |
673 m² |
FLOOR PLAN

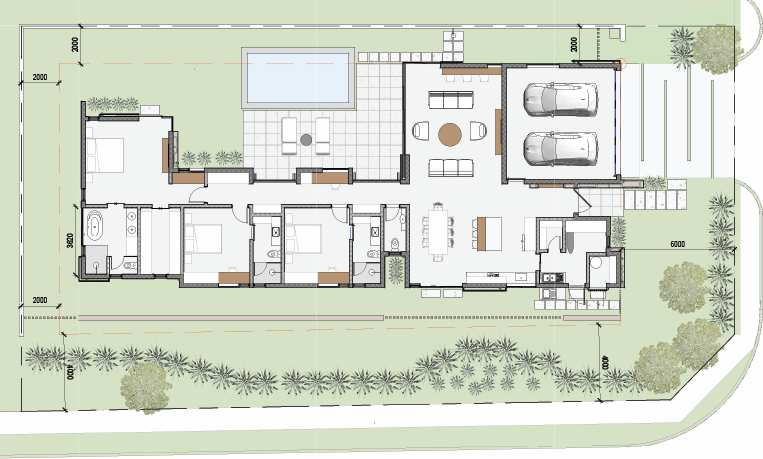

Villa Type 2 - Plot 74
Villa Type 2 - Plot 74
Areas - PLOT COVERAGE CALCULATION
| Name | Area Type | Area |
|---|---|---|
|
HOUSE |
Gross Building Area |
245.37 m² |
|
POOL BEACH |
Exterior Area |
35.41 m² |
|
POOL |
Exterior Area |
14.12 m² |
PLOT SIZES
| PLOT # | AREA m² |
|---|---|
|
74 |
754 m² |
FLOOR PLAN
Villa Type 3
Villa Type 3
Areas - PLOT COVERAGE CALCULATION
| Name | Area Type | Area |
|---|---|---|
|
HOUSE |
Gross Building Area |
224.52 m² |
|
POOL BEACH |
Exterior Area |
46.63 m² |
|
POOL |
Exterior Area |
14.12 m² |
PLOT SIZES
| PLOT # | AREA m² |
|---|---|
|
43 |
643 m² |
|
47 |
657 m2 |
|
50 |
659 m² |
|
51 |
655 m² |
|
76 |
811 m² |
FLOOR PLAN

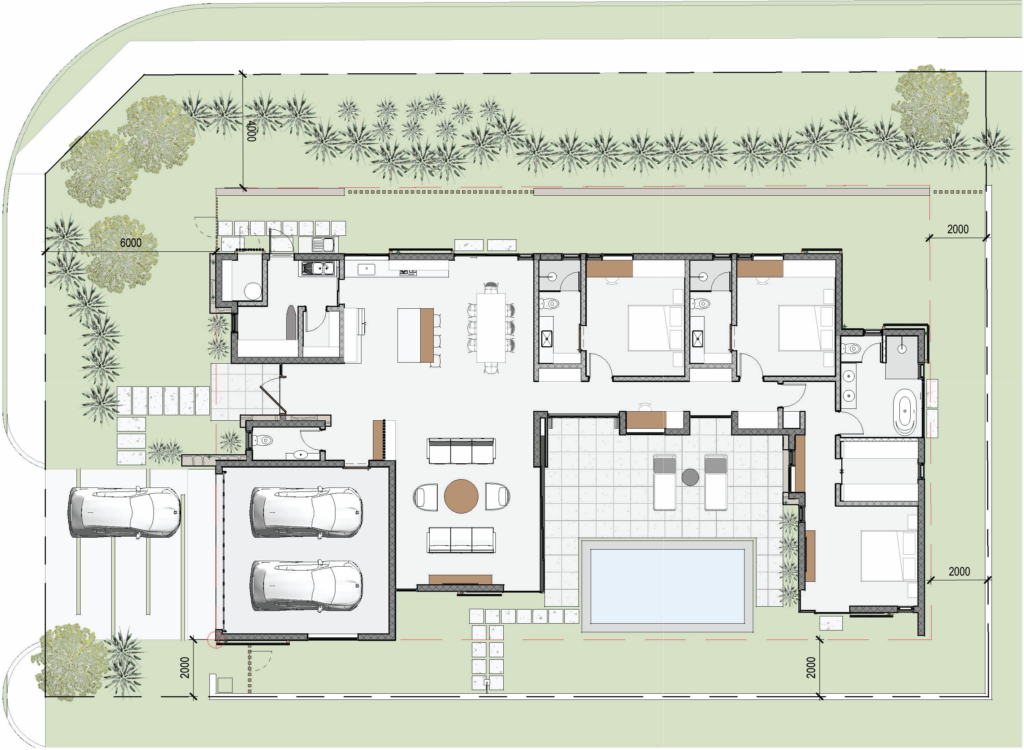

Villa Type 3 - Plot 54
Villa Type 3 – Plot 54
Areas - PLOT COVERAGE CALCULATION
| Name | Area Type | Area |
|---|---|---|
|
HOUSE |
Gross Building Area |
243.37 m² |
|
POOL BEACH |
Exterior Area |
37.71 m² |
|
POOL |
Exterior Area |
14.12 m² |
PLOT SIZES
| PLOT # | AREA m² |
|---|---|
|
54 |
726 m² |
FLOOR PLAN
Villa Type 3 - Mirrored
Villa Type 3 - Mirrored
Areas - PLOT COVERAGE CALCULATION
| Name | Area Type | Area |
|---|---|---|
|
HOUSE |
Gross Building Area |
224.52 m² |
|
POOL BEACH |
Exterior Area |
46.63 m² |
|
POOL |
Exterior Area |
14.12 m² |
PLOT SIZES
| PLOT # | AREA m² |
|---|---|
|
42 |
658 m² |
|
46 |
652 m2 |
|
79 |
850 m² |
FLOOR PLAN

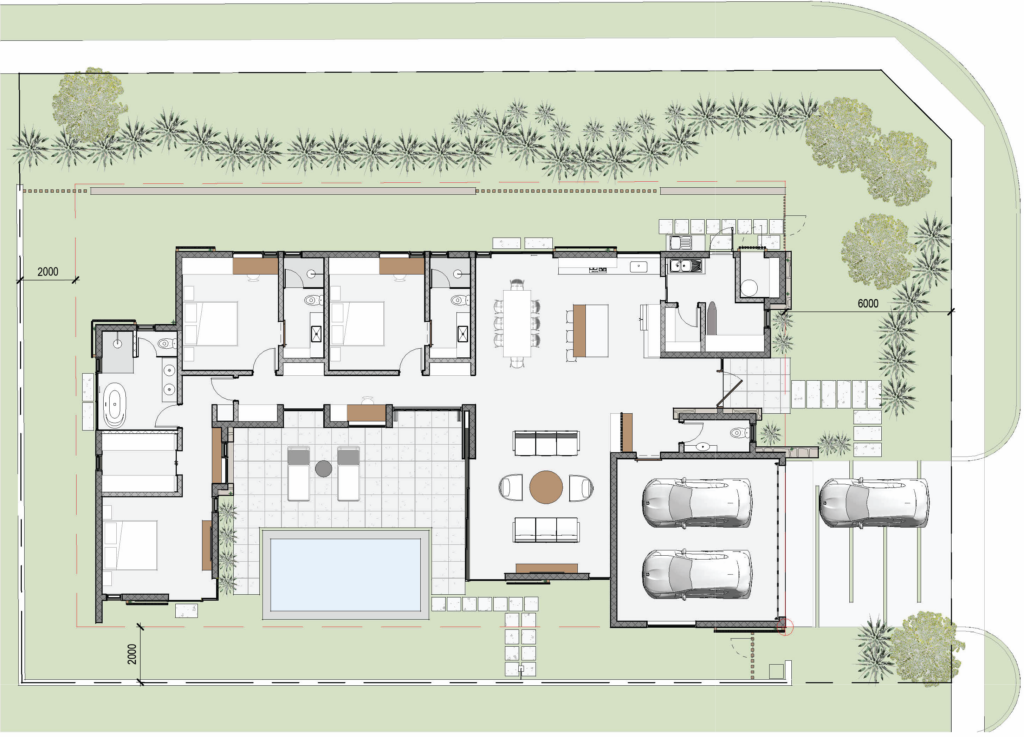

Villa Type 3 - Mirrored - Plot 55
Villa Type 3 - Mirrored Plot 55
Areas - PLOT COVERAGE CALCULATION
| Name | Area Type | Area |
|---|---|---|
|
HOUSE |
Gross Building Area |
243.37 m² |
|
POOL BEACH |
Exterior Area |
37.71 m² |
|
POOL |
Exterior Area |
14.12 m² |
PLOT SIZES
| PLOT # | AREA m² |
|---|---|
|
55 |
739 m² |
FLOOR PLAN
Villa Type 4
Villa Type 4
Areas - PLOT COVERAGE CALCULATION
| Name | Area Type | Area |
|---|---|---|
|
HOUSE |
Gross Building Area |
297.99 m² |
|
POOL BEACH |
Exterior Area |
60.86 m² |
|
POOL |
Exterior Area |
22.16 m² |
PLOT SIZES
| PLOT # | AREA m² |
|---|---|
|
44 |
813 m² |
|
49 |
801 m2 |
|
52 |
808 m² |
FLOOR PLAN

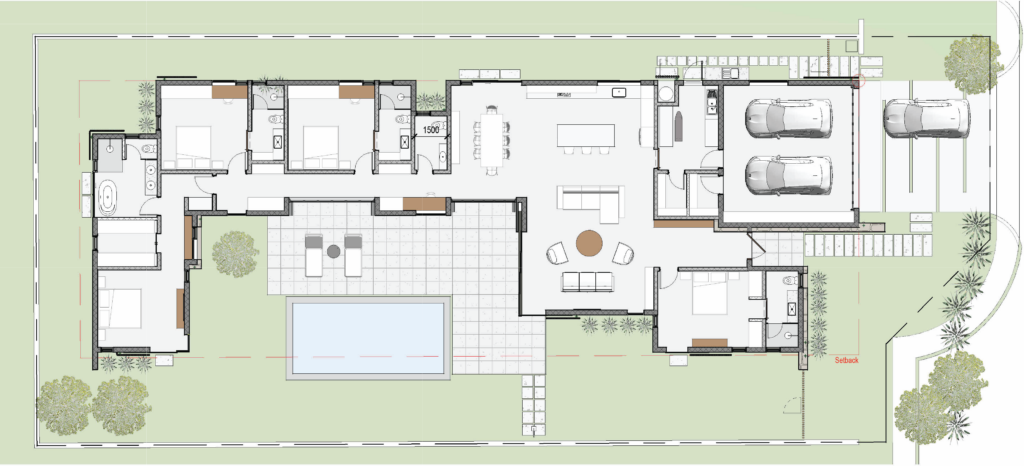

Villa Type 4 - Mirrored
Villa Type 4 - Mirrored
Areas - PLOT COVERAGE CALCULATION
| Name | Area Type | Area |
|---|---|---|
|
HOUSE |
Gross Building Area |
297.99 m² |
|
POOL BEACH |
Exterior Area |
60.86 m² |
|
POOL |
Exterior Area |
22.16 m² |
PLOT SIZES
| PLOT # | AREA m² |
|---|---|
|
48 |
811 m2 |
|
53 |
798 m² |
FLOOR PLAN

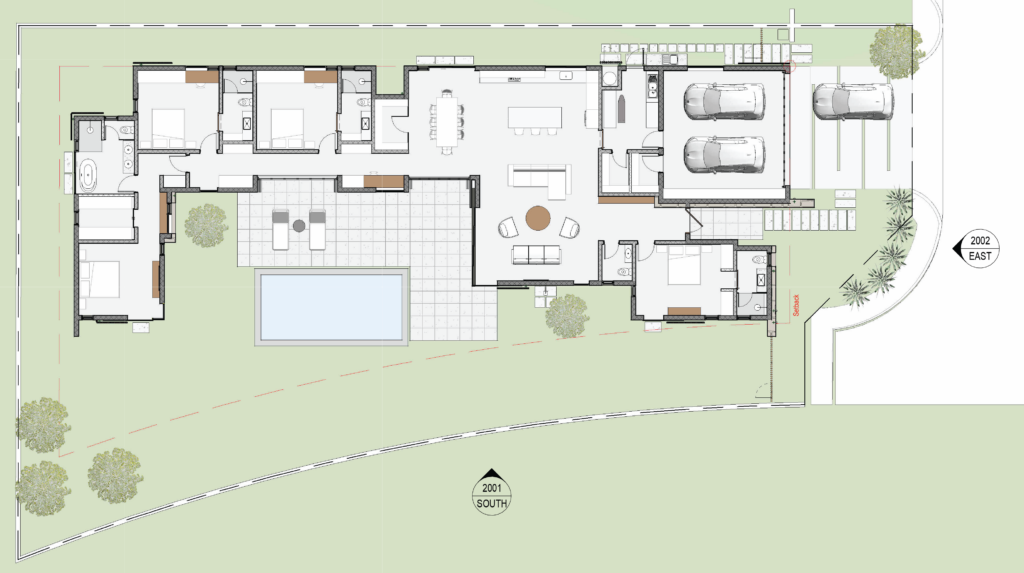

Villa Type 4 - Mirrored - 45
Villa Type 4 - Mirrored - Plot 45
Areas - PLOT COVERAGE CALCULATION
| Name | Area Type | Area |
|---|---|---|
|
HOUSE |
Gross Building Area |
301.62 m² |
|
POOL BEACH |
Exterior Area |
65.59 m² |
|
POOL |
Exterior Area |
22.08 m² |
PLOT SIZES
| PLOT # | AREA m² |
|---|---|
|
45 |
889 m² |
FLOOR PLAN
Villa Type 5
Villa Type 5
Areas - PLOT COVERAGE CALCULATION
| Name | Area Type | Area |
|---|---|---|
|
HOUSE |
Gross Building Area |
274.54 m² |
|
POOL BEACH |
Exterior Area |
41.40 m² |
|
POOL |
Exterior Area |
22.08 m² |
PLOT SIZES
| PLOT # | AREA m² |
|---|---|
|
70 |
722 m² |
|
71 |
760 m2 |
|
72 |
762 m² |
|
73 |
760 m² |
FLOOR PLAN
